Description

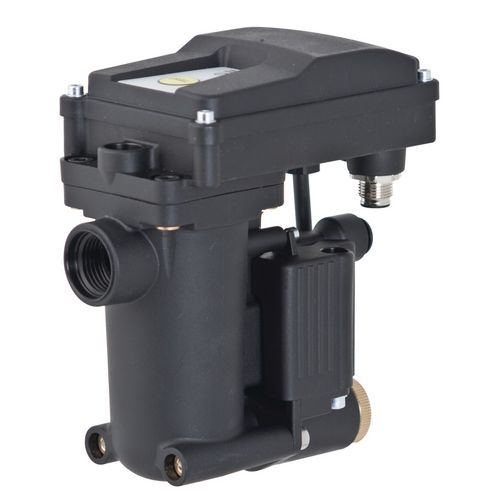

For fully automatic removal of condensate or other non-aggressive fluids from the compressed air system A capacitive sensor detects the level of the condensate. This is very accurate and requires no mechanical floats and contacts. For installation as external arresters on reciprocating or screw compressors, aftercoolers, cyclone separators, compressed air boilers, compressed air dryers and compressed air filters Equipped as standard with a factory alarm, LED indicator, test button and integrated sieve On request also version with service network for setting the diagnostic parameters and an alarm output available

function Description

The condensate is collected in the collection reservoir. If the level is high enough, the condensate is discharged from the system without loss of air Liquid level is detected by a precise capacitive liquid level sensor The special self-cleaning, direct-acting valve ensures reliable operation

The advantages at a glance

Integrated sieve (easy access / cleaning) Compact design Patented valve technology - direct acting, self-cleaning valve Optimized for easy service (maintenance kit) Horizontal or vertical installation possible Robust PA housing Including 2 meters connection cable with Schuko plug
