Description

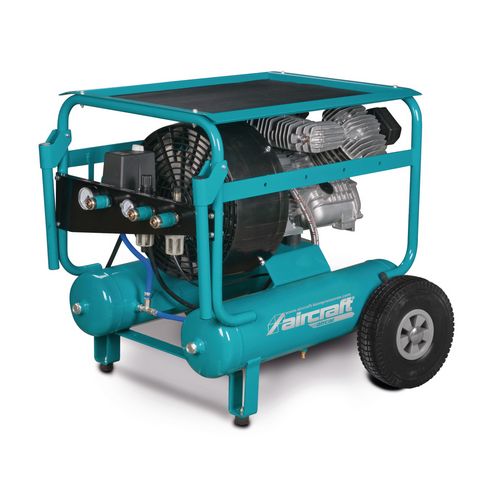

The frame is immediately tool storage as well as all-round protection for all sensitive components The 2-cylinder high-performance gray cast iron unit in the V position and the low speed ensure maximum smoothness and service life. Flexible armored hose line with heat protection prevents vibration breakage One manometer each to indicate the tank pressure and the set working pressure Three compressed air supply points with safety quick-release couplings for filtered compressed air, filtered and oiled compressed air and a direct compressed air outlet from the compressed air reservoir High quality CONDOR pressure switch Puncture-proof PU foam wheels in conjunction with the wide wheelbase ensure comfortable and safe transport Ten-year rust-through warranty on powder-coated compressed air tank High quality electric motor with high torque and motor start unloading, thus ensuring easy start-up Electric motor equipped with motor protection switch Fully automatic on-off operation With all safety devices

Your advantages

The on-off switch is protected above and easily accessible. The ergonomically designed control panel is clearly structured and self-explanatory. One manometer each to indicate the tank pressure and the set working pressure Three sampling points for filtered compressed air, filtered and oiled compressed air and a direct outlet from the compressed air tank on the control panel Standard with safety quick couplings and high quality CONDOR pressure switch With powerful 2-cylinder high-performance gray cast iron unit in V position With low-wear direct drive

service

Standard with high-quality CONDOR pressure switch The on-off switch is protected above and easily accessible. The ergonomically designed control panel is clearly structured and self-explanatory. One manometer each to indicate the tank pressure and the set working pressure One compressed air outlet for filtered compressed air, filtered and oiled compressed air and one direct compressed air outlet from the tank Standard with comfort safety quick couplings

footwell

At the footwell there are no fittings or switches that can be damaged during tipping and transport.

protection

The frame is immediately tool storage as well as all-round protection for all sensitive components The fittings are optimally protected against damage by the tubular frame and the overhead shelf.

Filter regulators

The working pressure is infinitely adjustable via the standard filter pressure regulator, with simultaneous dirt and condensate separation

mist oiler

The standard fog lubricator can be used to ensure adequate supply of the tools with lubricant.

High performance aggregate HOS

The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall. The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke. The oil scraper wipes the oil-wetted cylinder wall downwards.

landing gear

The large, stable wheels with puncture-proof PU foam tires in conjunction with the wide wheelbase ensure safe and comfortable transport even on uneven ground such as when climbing stairs

handles

Standard with fold-out handles for lifting during transport

hose hook

Standard with internally protected hose hook Hose not included

High quality container

Ten-year rust-through warranty on powder-coated compressed air tank Control panel Ergonomically favourably positioned, clearly structured and self-explanatory

manometer to display the tank pressure direct compressed air output with one-hand safety coupling from the compressed air tank filter pressure reducer to set the working pressure manometer to display the set working pressure compressed air output one hand Safety coupling for filtered compressed air mist lubricator for metered supply of lubricant to the tools compressed air outlet one hand safety coupling for filtered and lubricated compressed air
