Description

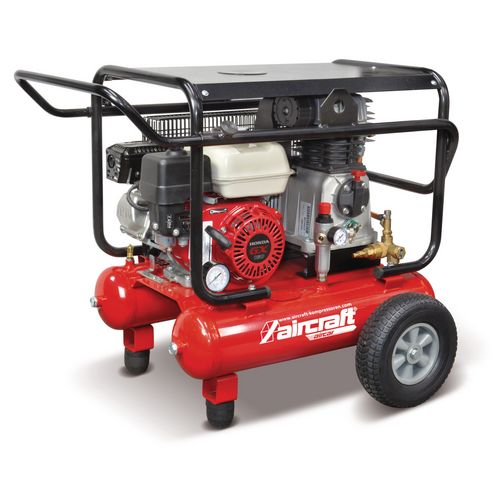

With 1-cylinder / 4-stroke Honda engine for off-grid operation Due to its independence from the power grid, it is particularly suitable for gardening and landscaping, mobile tire service and breakdown services as well as agriculture and forestry With idling and speed control, thereby adapting to the respective load conditions The high-performance gray cast iron unit and the low speed warranty maximum smoothness and a long service life. The large fan wheel and a cooling air baffle ensure optimum cooling of the compressor. Stable belt guard made of metal An aftercooler with large cooling fins ensures a low tank inlet temperature and therefore less moisture in the compressed air With all safety devices Ten-year rust-through warranty on powder-coated compressed air tank Room amenities:

Freewheel valve for less wear

The freewheel valve avoids constant switching on and off After reaching the set pressure, the valve opens and the compressor runs without pressure When the pressure drops, the valve closes and the compressor works again on pressure Service

On the filter pressure regulator, you can fix the working pressure infinitely and remove pressure-reduced and filtered compressed air. Two pressure gauges show the tank u. Working pressure. As standard with quality quick coupling and high quality CONDOR pressure switch Round protection

The frame is at the same time a compressed air tank, holder for tool storage as well as all-round protection for all sensitive components Optimally protected and transportable with high performance Eyebolts

With two lifting eyes on the frame for lifting eg with a crane Transport handle

The two-handed grip allows easy transport to the job site Shock mounts

Equipped with two large and wide front swinging elements for stable stability Tool tray

Practical in everyday use as a storage for tools, plans, etc. and as protection against damage from above High performance aggregate HOS

The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall. The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke. The oil scraper wipes the oil-wetted cylinder wall downwards. PU foam tires

The large, stable wheels with puncture-proof PU foam tires ensure easy and comfortable transport even on uneven ground Control panel Ergonomically favourably positioned, clearly structured and self-explanatory

manometer to display the tank pressure direct compressed air output with one-hand safety coupling from the compressed air tank filter pressure reducer to set the working pressure manometer to display the set working pressure compressed air output one hand Safety coupling for filtered compressed air mist lubricator for metered supply of lubricant to the tools compressed air outlet one hand safety coupling for filtered and lubricated compressed air

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
