Description

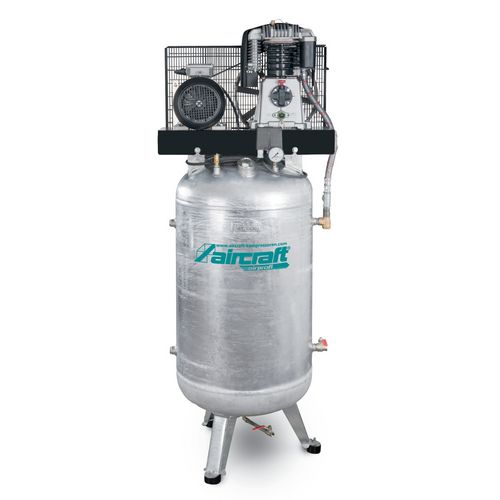

The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run Large fan ensures optimal cooling Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation High quality electric motor with high torque Electric motor equipped with motor protection switch Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank Flexible armored hose line with heat protection prevents vibration breakage High-quality CONDOR pressure switch as standard From 7.5 kW as standard with star-delta switch with operating hours counter Ready for connection with all fittings Additional equipment K-version:

Refrigerated dryer with integrated automatic steam trap for dry compressed air, longer service life of compressed air tools and avoidance of disturbances in pneumatic controls Fine filter for separating condensate and solid impurities with particles up to 1 μ in front of the refrigeration dryer Equipment

Automatic steam trap on the compressed air tank No unnecessary pressure loss

Condensate conditioner for oil-water separation Important notes on condensate treatment can also be found in the section on compressed air preparation.

Fine filter for separating condensate and solid impurities with particles up to 1 μm Compressed air quality according to ISO 8573-1 As a pre-filter in front of the refrigeration dryer

Refrigerated dryer with integrated automatic steam trap Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
