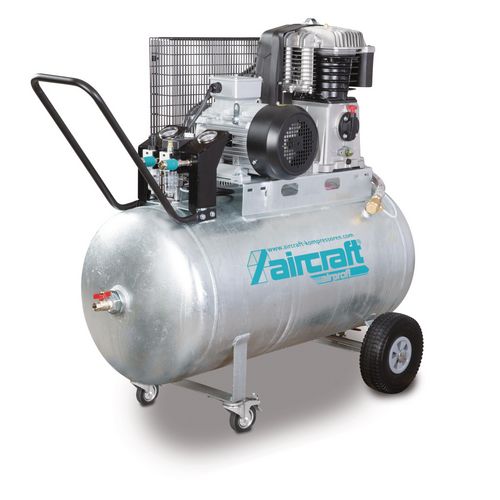

Description

Maximum, robust equipment and best quality at a reasonable price Fully automatic on-off operation With all safety devices Fully wired Quality electric motor

Quality electric motor with high torque is equipped with a motor protection switch Start-up capacitor and start-up relief valve ensure easy start-up As standard with phase inverter for easy manual reversal of the direction of rotation Compressed air compression via high-performance aggregate HOS

The start-up relief valve ensures a light and pressure-free start High-performance unit made of gray cast iron and the low speed guarantee particularly quiet, low-vibration operation and a long service life This ensures an even longer life due to even less wear High-quality compressor with optimum lubrication for a long service life and high reliability Equipped with high quality suction filter The aftercooler with large cooling fins ensures a low boiler inlet temperature and thus less moisture in the compressed air, which protects the compressed air tools In addition with intercooler to the aftercooler Corrosion-free valve plates for improved heat dissipation and longevity of the compressor The large fan wheel and a cooling air baffle on the cylinder ensure optimum cooling of the compressor A sturdy belt guard made of metal ensures optimum protection of the components and high user safety Compressed air supply into the boiler via flexible armored hose line with heat protection prevents vibration fracture High quality drive belt

Powerful and economical drive The toothed drive belt facilitates start-up, improves smoothness and power transmission and reduces the Power consumption up to 30% Stable belt guard made of metal Operation at the maintenance block

Equipped with a high-quality CONDOR pressure switch MDR 5 with robust push button function for fully automatic on-off operation Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous dirt, oil and condensation separation Two large pressure gauges indicate the tank and working pressure Air extraction at the maintenance block via a comfort safety quick coupling Only fixed screw connections at the maintenance block, no hose connections Two compressed air supply points

A compressed air extraction point for filtered compressed air A compressed air extraction point via direct outlet on the boiler with ball valve Comfort safety clutch - the advantages.

Comfort safety couplings from AIRCRAFT are the first manufacturer to be used as standard Two separate locking systems for maximum work safety Dangerous flogging of the hose is prevented Comfortable and safe to transport and set up

Ergonomically extended handle for easy transport in a nearly upright position - stress on the back by lifting is avoided Puncture-proof PU foam wheels and stable steering gear with parking brake enable easy transport The parking brake prevents rotation and rolling of the wheels and ensures an optimal level of the compressor With practical second transport handle on the boiler, with which the carrying of the compressor is facilitated High-quality boiler with durable rust protection
