Description

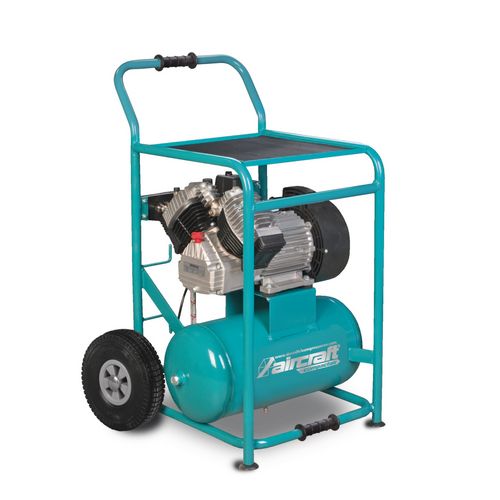

The compact design allows a comfortable transport. Thanks to the all-round protection, ideally suited for daily assembly use. Universally applicable in the assembly and crafts area The low speed warrantys maximum smoothness and durability The PU foam tires in conjunction with the wide wheelbase ensure comfortable and safe transport Flexible armored hose line with heat protection prevents vibration breakage High quality electric motor with high torque Electric motor equipped with motor protection switch Fully automatic on-off operation All transport-endangered parts are optimally protected by the compact design With all safety devices With quality quick couplings and high quality CONDOR pressure switch Ten-year rust-through warranty on powder-coated compressed air tank Room amenities:

Optimal frame ergonomics

Transport by stairs through one person possible Easy to tip, thereby driving back-friendly Stable stand

service

Standard with high-quality CONDOR pressure switch The on-off switch is protected above and easily accessible. The ergonomically designed control panel is clearly structured and self-explanatory. One manometer each to indicate the tank pressure and the set working pressure Two compressed air outlets for filtered compressed air, filtered and oiled compressed air and a direct compressed air outlet from the compressed air tank Standard with quality quick couplings

cable hook

With inside protected cable hooks

hose hook

Standard with internally protected hose hooks Hose not included

tool tray

The tool tray above the compressor also protects it during transport. It can also be used as a practical storage for eg tools. Suitable for the standard systainer of all electric tools manufacturers such as: Makita, Festool, Mafell, ...

Filter regulators

The working pressure is infinitely adjustable via the standard filter pressure regulator - with simultaneous dirt and condensate separation.

footwell

At the footwell, there are no fittings or switches that can be damaged during tipping and transport

High performance aggregate HOS

The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall. The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke. The oil scraper wipes the oil-wetted cylinder wall downwards.

landing gear

The large, stable wheels with puncture-proof PU foam tires in conjunction with the wide wheelbase ensure safe and comfortable transport even on uneven ground such as when driving stairs.

handle

As standard with rubber carrying handle against slipping during transport.

protection

Compressor in all-round protected compact design The fittings are optimally protected against damage by the tubular frame and the overhead shelf.

High quality container

Ten-year rust-through warranty on powder-coated compressed air tank
