Description

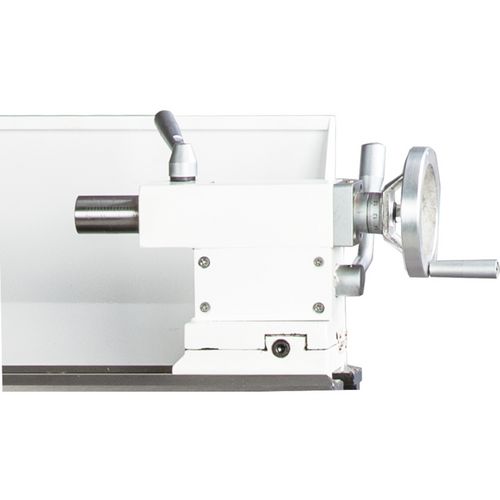

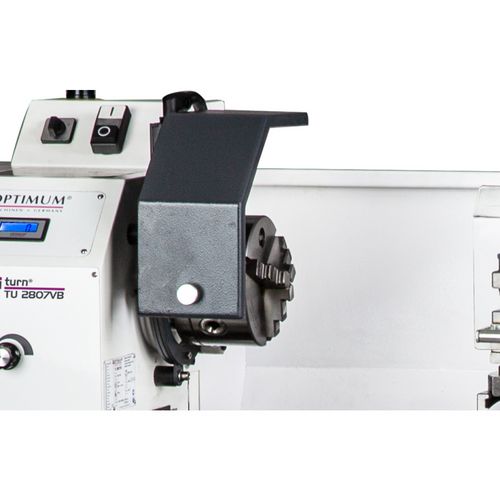

Precisely manufactured Powerful, maintenance-free engine Hardened and ground Z-axis guideway Guaranteed concentricity of the spindle nose ≤ 0.009 mm Concentricity on the lathe chuck ≤ 0.04 mm Lead screw for thread cutting or automatic longitudinal turning Leadscrew stored in two sintered bearings All guides can be adjusted by wedge strips Right / left rotation in the control panel switchable Rolled trapezoid spindles Thrust bearing Tapered roller bearings in P5 quality Hardened main spindle mounted in adjustable precision tapered roller bearings Hardened spindle nose with Ø 26 mm spindle bore Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm Upper slide on cross slide slidable Chip protection on the upper slide Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground Tailstock for taper turning ± 5 mm adjustable Tailstock quill and handwheel with adjustable fine scale 0.02 mm Quick, easy and tool-free adjustment of the tailstock by a clamping lever Emergency stop impact switch Quadruple tool holder 3-jaw lathe chuck in the standard scope of delivery Change gear set in the standard scope of delivery for thread cutting Fully equipped, allowing the user to be productive immediately after commissioning TU 2506VB: Speed change easily adjustable via potentiometer

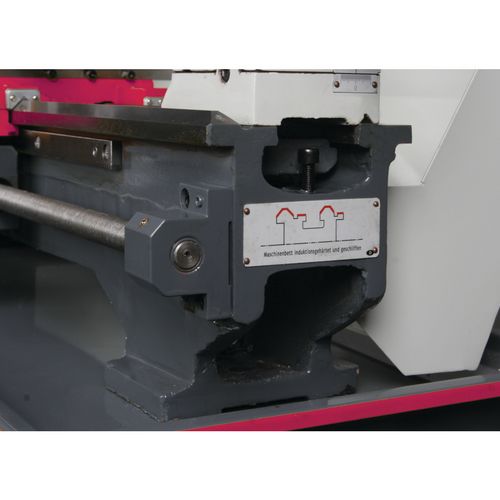

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
