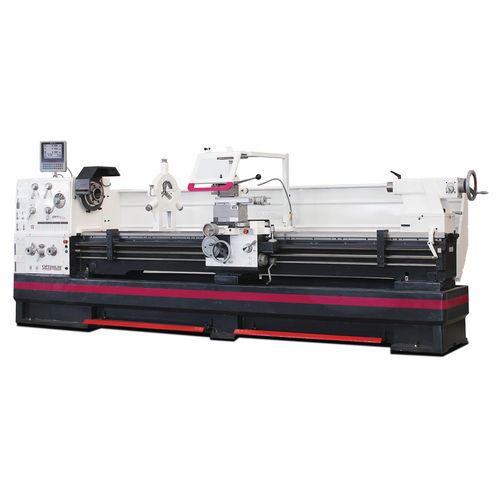

Description

Hardened and ground Z-axis guideway Guaranteed concentricity of the spindle nose better than 0.015 mm Spindle holder Camlock DIN ISO 702-2 No. 8 Lead screw cover Precisely machined slide All guides can be adjusted using wedge strips Right/left rotation on bed slide switchable via switching spindle Two-channel safety electronics Upper slide adjustment range ± 90 Smooth-running, hardened and ground gear wheels mounted on 2 adjustable precision tapered roller bearings Clearly arranged selector lever for switching the feed speeds Closed design of the high-speed feed gearbox Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings Handwheels decoupled and tested in accordance with EN 23125 Safety handwheels with disengagement function in the X-axis Handwheels with adjustable fine scaling 0.04 / 0.02 mm Safety limit switch with positive opening contacts Switch with life cycle calculation, tested in accordance with EN ISO 13849 Central lubrication in the bed slide Emergency stop switch, motor protection switch, lockable main switch LED machine lamp Energy chain for gentle cable and hose routing Emergency stop device with foot control Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN Electric motor brake with quick emergency stop - quick stop without overrun during normal operation Electrical system with Siemens components Quick-change steel holder SWH 9-D 1 steel holder 41 x 180 type D for square chisel 32 mm

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
