Description

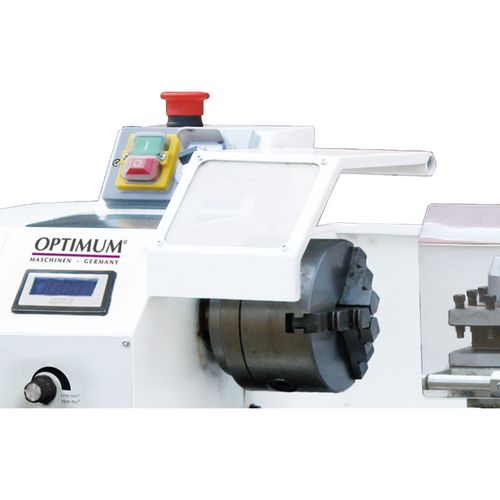

Precise processing Cast iron gray prism bed, aged for at least six months, inductively hardened and precision ground Hardened and ground Z-axis guideway Guaranteed concentricity of the spindle nose better than 0.009 mm Rolled trapezoid spindles Leadscrew stored in two sintered bearings All guides can be adjusted by wedge strips Precisely crafted sled Handwheels with adjustable fine scale 0.04 / 0.01 mm Quadruple tool holder Concentricity - chuck better than 0.05 mm Lead screw for thread cutting or automatic longitudinal turning Right / left rotation in the control panel switchable Tailstock for taper turning ± 5 mm adjustable Tailstock quill and handwheel with adjustable fine scale 0.02 mm Fast, easy and tool-free adjustment by means of a clamping lever Emergency stop impact switch Lathe chuck protection thrust bearing Change gear set for threading Extensive accessories 3-jaw lathe chuck in the standard scope of delivery Stable value TU 2304V Speed change easily adjustable via potentiometer Digital speed display EMC filter class C1

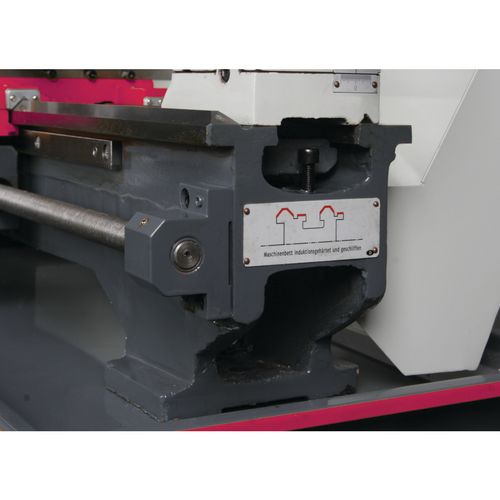

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
