Description

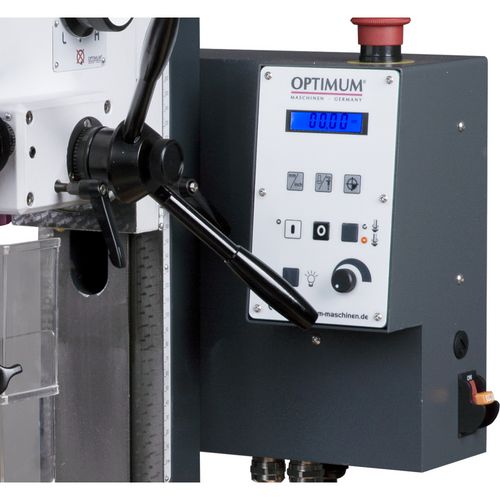

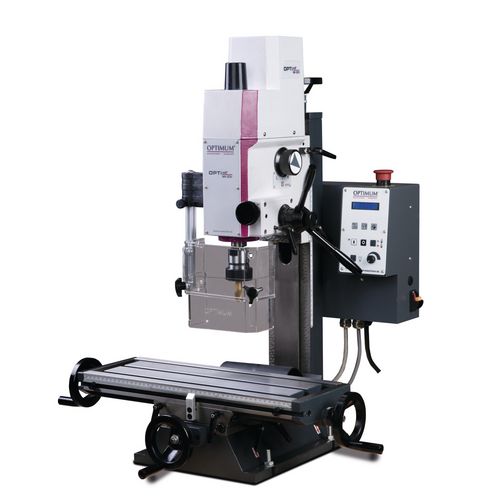

Precisely processed High concentricity due to tapered roller bearings ≤ 0.015 mm measured in the sleeve Motor with two-stage gear ratio for powerful transmission of motor power Powerful DC motor with permanent current monitoring Air filter for motor New electrical system with improved motor protection (extended circuit board and circuit board for EMC) Safety electrics in 24 volt version Control electronics with integrated relay control Massive and generously dimensioned cross table, precisely surface-machined with T-slots and adjustable gibs Adjustable end stops Stable dovetail guide with adjustable gibs Adjustable and re-adjustable feed spindle play Emergency stop switch Drilling/milling head can be tilted by ±60 Right/left rotation Machine lamp Double-row angular contact ball bearings in the axes, adjustable without play Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user Preparation for mounting the DRO5 digital position indicator in the X and Y axes (prepared groove for retrofitting the magnetic strips) Lockable main switch

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
