Description

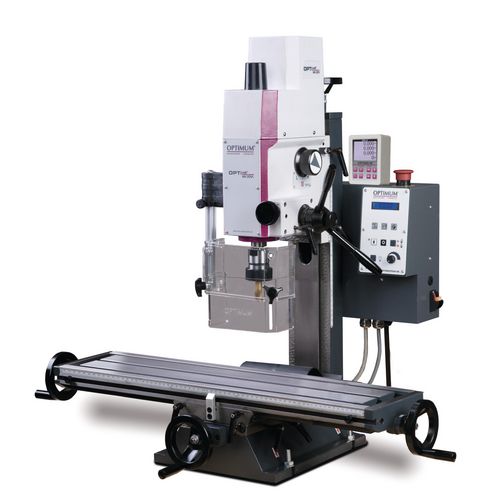

Precisely built High concentricity due to tapered roller bearings ≤ 0.015 mm measured in the quill Motor with two-stage gear ratio for powerful transmission of motor power Manual quill feed with fine feed Powerful DC motor with permanent current monitoring Safety electronics in 24 Volt version Control electronics with integrated relay control Clear control panel with user-friendly membrane keyboard Easy-to-read digital display for speed and drilling depth Solid and large dimensioned cross table, precisely finished with T-slots and adjustable wedge strips Adjustable end stops Stable dovetail guide with adjustable wedge strips Emergency stop impact switch Drilling and milling head can be tilted by ± 60° Fine milling feed Forward/reverse rotation Machine lamp Double-row angular contact ball bearings in the axes, adjustable without play Height-adjustable protective screen with microswitch, against flying chips and parts, for the greatest possible protection of the user X, Y and Z axes with prepared groove for the subsequent assembly of magnetic tapes With digital position indicator DRO 5

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
