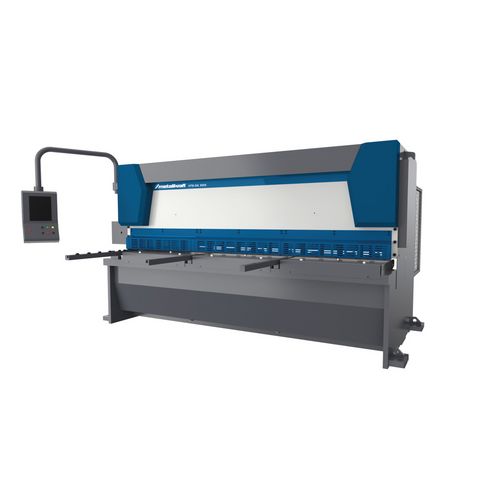

Description

Standard design:

Very heavy and robust welded construction Cybelec CybTouch8 touchscreen NC control unit Automatic cutting angle and kerf adjustment depending on material type and thickness Cutting angle adjustment enables higher cycle rates and better cutting quality Motorized backgauge 1000mm with ball screws and solid guides 1000 mm side stop with scale, T-slot and tilting cam Two front support arms 1000mm for simplified handling of large sheets Stainless steel table supports fitted with transfer balls for easier handling of heavy and large boards Front finger guard with viewing panels First meter of the finger guard can be opened to make it easier to insert remnants LED cutting line lighting with shadow gap via adjustable wire Rear area protection via safety light curtain Double-acting cylinders for cutting and return stroke of the blade bar High-quality blades, suitable for cutting stainless steel Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges Hydraulic and electronic components from renowned manufacturers Special accessories:

Pneumatic sheet support for the rear area Finger protection by means of light curtain Extension of the side stop or front supports Removable mitre fence 0-180° Laser cutting line indicator Spare blade
