Description

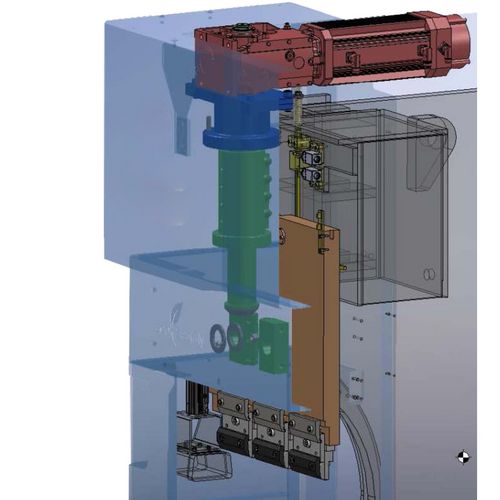

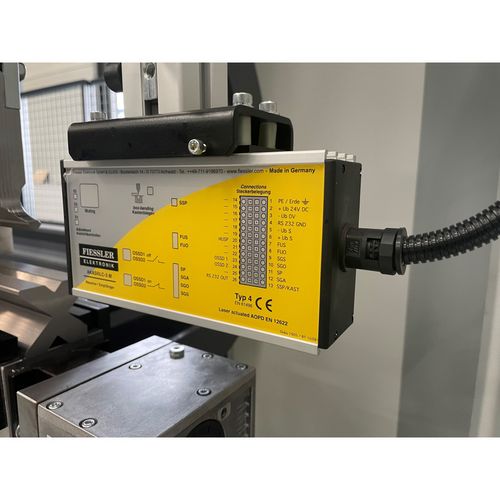

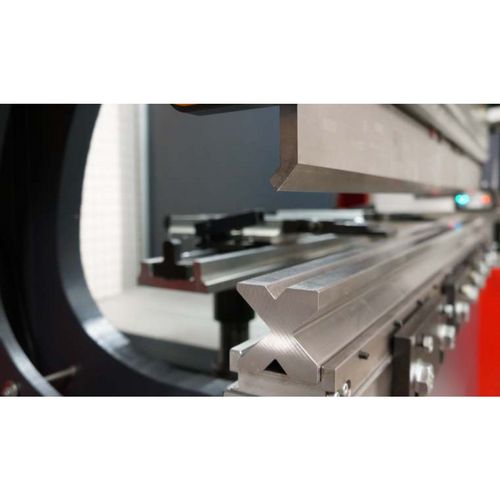

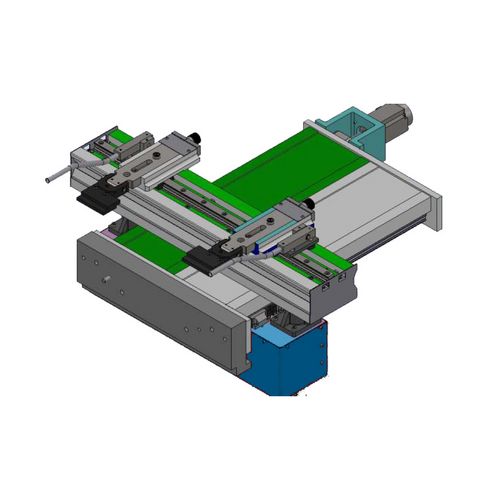

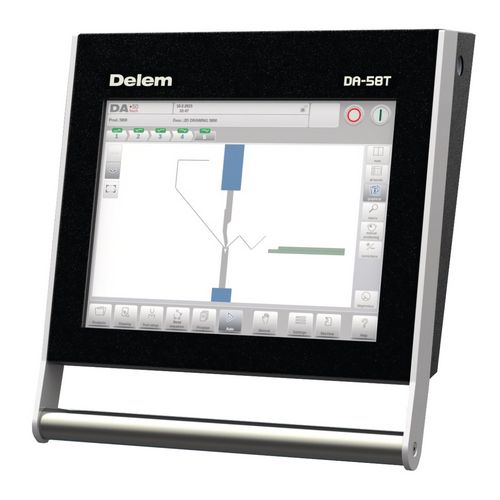

Standard design: Purely electric drive of the press beam via servo motors and recirculating ball screws reduces energy consumption and noise pollution Extremely high working speeds possible with 150mm/s rapid traverse and 20mm/s pressing speed No maintenance and leakage of hydraulics - no hydraulic oil required Machine body as dimensionally stable O-frame - no springing up 2D-CNC graphic control Delem DA-58T control with large 15" touch screen, ergonomically mounted on swivel arm Offline software Profile-T Lite Y1, Y2, X and R axes CNC controlled Motorized back gauge driven by zero-backlash ball screws and solid guides Two back gauge fingers manually adjustable in longitudinal direction on linear rail Safety laser Nuova DSP-AP moving with the upper beam Safety PLC Nuova MCS Promecam/Amada tooling system Quick upper die clamping with lateral die removal Simple die clamping via clamping plates Complete set of sectioned dies Slightly cranked upper die 85° with 104mm height Quadruple die 85° with V-openings 16, 22, 35 and 50mm High quality electronic components LED work area illumination Mobile double foot pedal Special accessories: Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T). 4-, 5-, or 6-axis back gauge systems Additional back gauge fingers Hydraulic or pneumatic tool clamping Ergonomically adjustable front support table

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
