Description

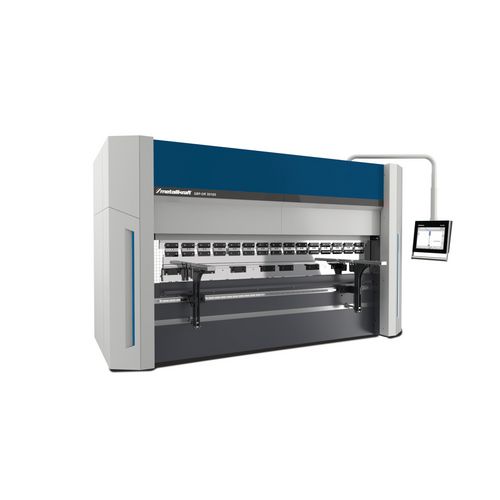

Standard design: Purely electric drive via servo motors, belts and pulleys reduces energy consumption and noise pollution Very high pressing speed with 20mm/s No maintenance and leakage of hydraulics - no hydraulic oil required Machine body as dimensionally stable, closed O-frame - no springing up 2D-CNC graphic control Delem DA-58T control with large 15" touch screen, ergonomically mounted on swivel arm Offline software Profile-T Lite Y1, Y2, X and R axes CNC controlled Motorized backgauge driven by zero-backlash ball screws and solid guides Two backgauge fingers manually adjustable in longitudinal direction on linear rail Safety laser Nuova DSP-AP moving with the upper beam Safety PLC Nuova MCS Motorized CNC control automatically calculated by the CNC Promecam/Amada tooling system Quick upper die clamping with lateral die removal Simple die clamping via clamping plates Complete set of sectioned dies Slightly cranked upper die 85° with 104mm height Quadruple die 85° with V-openings 16, 22, 35 and 50mm Two quick adjustable front support arms on linear rails High quality electronic components LED work area illumination Mobile double foot pedal Special accessories: Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T) 4-, 5-, or 6-axis backgauge systems Additional backgauge fingers Hydraulic or pneumatic tool clamping

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
