Common CNC Machining Problems and How to Prevent Them

Common CNC Machining Problems and How to Prevent Them

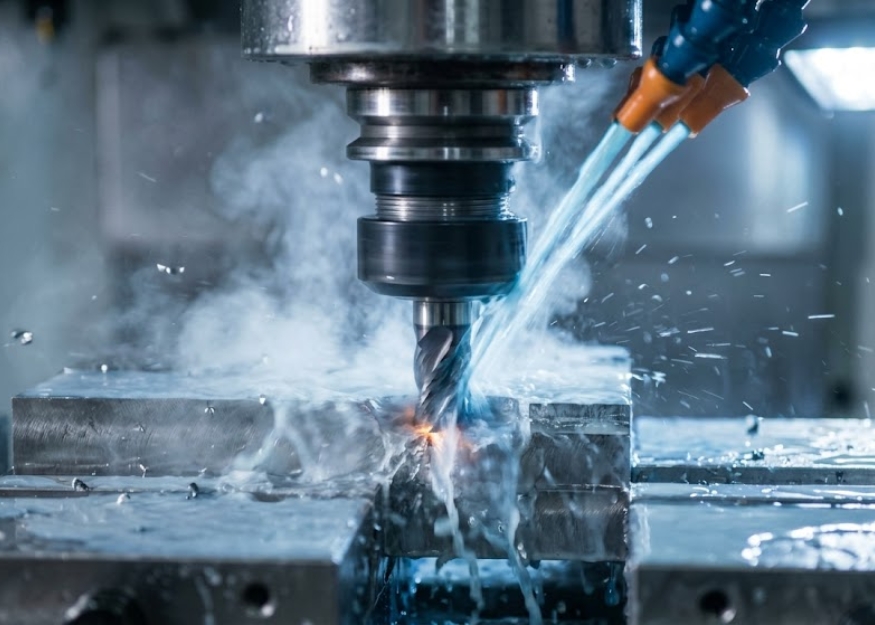

Computer Numerical Control (CNC) machining is the backbone of modern industrial manufacturing, delivering high-precision metal parts for aerospace, automotive, oil & gas, and general engineering sectors. However, even high-end CNC lathes, milling centers, and multi-axis machining centers can run into operational issues that cause tool wear, poor surface finishes, dimensional errors, or costly downtime.

Understanding the root causes of common CNC machining problems and establishing proactive preventive measures, helps machine shop managers, process engineers, and machine operators optimize production efficiency and protect equipment investments.

Symptom-to-Cause Diagnostic Guide

When a CNC process begins to fail, identifying the underlying cause quickly prevents scrapped parts and tool damage. Use this quick decision guide to narrow down the issue:

• Symptom: High-Frequency Screeching or Pattern Lines on Part
  • Primary Suspect: Harmonic vibration or excess tool projection. Check tool overhang, holder clamping, and spindle speed.
• Symptom: Gradual Size Drift Across Consecutive Workpieces
  • Primary Suspect: Thermal expansion of the spindle/ball screw or progressive flank wear. Verify thermal stability and check insert edge wear.
• Symptom: Sudden Part Size Shift (Step Change)
  • Primary Suspect: Workpiece movement in the vise/fixture or insert edge chipping. Check clamping pressure, seating faces, and cutting insert integrity.
• Symptom: Burrs or Gummy Finish on Ductile Materials
  • Primary Suspect: Built-up edge (BUE) or dull cutting edges. Increase cutting speed (vc), verify coolant delivery, and select a sharper insert geometry.

1. Excessive Tool Wear and Premature Tool Failure

Tool wear is natural during metal cutting, but rapid chipping, thermal cracking, edge buildup, or sudden tool breakage indicates an unstable machining process.

Root Causes

• Incorrect Cutting Parameters: Operating at excessively high cutting speeds (vc) causes thermal degradation of the cutting edge, while excessive feed rates (fz) overload tool geometry.
• Unsuitable Tool Selection: Using improper carbide grades, incorrect coating types (e.g., TiAlN, TiCN), or suboptimal rake angles for the target material.
• Inconsistent Coolant Delivery: Thermal shock caused by intermittent coolant application leads to micro-cracking in carbide inserts.

How to Prevent It

• Optimize Feeds and Speeds: Follow tool manufacturer recommendations for surface speed and chip load, adjusting for material hardness (e.g., stainless steel, titanium, or hardened tool steel).
• Match Tool Coatings to Workpieces: Select specialized physical vapor deposition (PVD) or chemical vapor deposition (CVD) coatings optimized for heat dissipation or chip evacuation.
• Ensure Targeted Coolant Delivery: Utilize through-spindle coolant (TSC) or targeted flood coolant lines at adequate pressure to maintain uniform temperatures at the cutting zone. High-pressure coolant setups (often 20 to 70 bar or higher, depending on the machine and deep-hole drilling application) ensure continuous thermal stability and efficient chip flushing.

2. Poor Surface Finish and Chatter Problems

A poor surface finish (Ra) often manifests as visible chatter marks, burrs, or rough textures, requiring secondary polishing or causing part rejections.

Root Causes

• Machine and Tool Vibration (Chatter): Harmonic resonance between the cutting tool, tool holder, workpiece, or machine frame.
• Excessive Tool Deflection: Long tool overhangs (high length-to-diameter ratio) causing flex under cutting loads.
• Built-Up Edge (BUE): Material welding to the cutting edge, commonly occurring when machining soft, gummy metals like aluminum or low-carbon steel.

How to Prevent It

• Reduce Tool Overhang: Use the shortest possible tool projection and high-rigidity tool holders (such as shrink-fit or hydraulic chucks).
• Adjust Cutting Speeds and Axial/Radial Depths: Change spindle RPM slightly to disrupt harmonic resonance and eliminate chatter frequency.
• Use Variable-Helix End Mills: Employ specialized cutting tools designed with unequal flute spacing to break up chatter patterns during high-speed milling.

3. CNC Machining Dimensional Accuracy and Tolerance Drift

When machined components fail post-process coordinate measuring machine (CMM) inspection, isolating the cause requires systematic diagnostics before adjusting machine offsets.

Diagnostic Steps for Dimensional Errors

1. Isolate Workpiece Movement: Measure the part in the fixture, then unclamp and remeasure. If dimensions jump upon release, the issue is internal stress or fixture distortion rather than axis drift.
2. Check for Thermal Growth: Run a test batch after a 20-minute spindle warm-up routine. If dimensions remain stable after warming up, thermal expansion of the ball screws or spindle is the root cause.
3. Inspect Mechanical Backlash: Move the axis in one direction to an indicator zero, reverse direction by 1 mm, and check if the indicator returns accurately. Any deficit indicates ball screw or guide wear.

How to Prevent It

• Implement Warm-Up Routines: Run automated spindle and axis warm-up routines prior to critical finishing passes to achieve thermal equilibrium.
• Use In-Process Probing Systems: Integrate automated tool setters and workpiece probes to verify tool dimensions and part datum points dynamically.
• Perform Regular Machine Calibration: Conduct periodic ballbar testing and laser alignment checks on your CNC milling machines to detect and correct axis backlash.

4. Poor Chip Evacuation and Re-Cutting

Inadequate chip clearance leads to chip recutting, which degrades surface finish, increases cutting forces, and frequently breaks small-diameter tools.

Root Causes

• Insufficient Coolant Flow: Low coolant pressure or poor nozzle positioning fails to flush chips out of deep cavities or blind holes.
• Incorrect Chipbreaker Geometry: Using inserts without appropriate chipbreaker designs causes long, stringy chips (nesting) rather than tight, manageable C-shaped chips.
• Improper Pecking/Milling Strategies: Drilling deep holes without peck cycles or pocketing without optimized trochoidal milling paths.

How to Prevent It

• Utilize High-Pressure Air or Coolant Blasts: Program targeted high-pressure coolant or compressed air blasts for deep-pocket or dry machining applications.
• Adopt Advanced CAM Toolpaths: Apply dynamic motion or trochoidal milling strategies to maintain consistent chip thickness and improve evacuation.
• Select Suitable Insert Geometries: Choose aggressive chipbreaker geometries tailored to ductile materials to promote reliable chip curling and fracture.

5. Workpiece Movement and Fixturing Instability

Part vibration or shift during heavy roughing cuts can destroy the workpiece, ruin cutting tools, and potentially damage the machine spindle.

Root Causes

• Insufficient Clamping Force: Clamping pressure is too low to resist cutting forces.
• Distortion from Over-Clamping: Excessive clamping force deforms thin-walled parts, causing dimensional errors once released from the fixture.
• Dirty or Worn Location Points: Swarf or chips trapped under locating pins or vise jaws prevent accurate seating.

How to Prevent It

• Use Standardized Modular Fixturing: Implement high-rigidity hydraulic or pneumatic vises, zero-point clamping systems, or custom soft jaws.
• Clean Locating Surfaces Between Cycles: Program automated air blasts or instruct operators to thoroughly clean locating faces before loading new stock.
• Calculate Cutting Force Vectors: Ensure clamping forces are directed against solid stops rather than relying solely on friction.

Practical Action Plan & Diagnostic Workflow

Instead of relying on broad trial-and-error, shop floor engineers can follow this step-by-step diagnostic workflow to resolve machining defects:

Rapid Edge Chipping & Micro-Fractures

• Root Cause: Excessive feed rate or severe thermal shock during interrupted cuts.
• Diagnostic Check: Inspect insert cutting edges under optical magnification to distinguish between mechanical chipping and thermal micro-cracks.
• Corrective Action: Reduce feed rate per tooth (fz), select a tougher carbide grade, or ensure uninterrupted high-pressure coolant flow.

Visible Surface Chatter Lines

• Root Cause: Tool assembly deflection or acoustic harmonic resonance between tool and workpiece.
• Diagnostic Check: Perform a physical tap test on the tool overhang setup; verify length-to-diameter ratio (L/D).
• Corrective Action: Shorten tool projection length, shift spindle RPM by 10% to 15% to interrupt resonance, or switch to variable-helix tooling.

Part Taper and Out-of-Round Features

• Root Cause: Unmanaged machine thermal growth or un-trammed spindle heads.
• Diagnostic Check: Measure part geometry at cold startup, then compare against dimensions recorded after two hours of continuous running.
• Corrective Action: Establish mandatory automated warm-up cycles, calibrate spindle tramming, and monitor ball screw thermal expansion.

Stringy, Nesting Chip Accumulation

• Root Cause: Incorrect insert chipbreaker selection or insufficient cutting velocity.
• Diagnostic Check: Observe chip formation during roughing passes to ensure proper plastic deformation and curling.
• Corrective Action: Switch to a high-shear chipbreaker geometry and adjust surface speed (vc) to encourage clean chip fracture.

Dimensional Drift Across Shifts

• Root Cause: Unregulated ambient shop temperatures combined with progressive tool flank wear.
• Diagnostic Check: Compare early-shift CMM inspection reports with late-shift quality control logs.
• Corrective Action: Maintain stable climate control across the shop floor, establish rigid insert replacement schedules based on flank wear limits, and activate optical linear scale feedback.

CNC Machining Tools in Saudi Arabia: Industrial Buying Considerations

Machine shops, industrial manufacturing plants, repair workshops, and equipment service facilities across Saudi Arabia, including major industrial centers in Riyadh, Jeddah, Dammam, and Jubail face unique operational factors. Managing high ambient temperatures, dusty factory environments, and demanding production schedules requires strategic tooling and equipment sourcing.

When procuring CNC machining equipment and technical supplies in Saudi Arabia, workshop managers should prioritize:

• Spare-Part & Tooling Supply Availability: Sourcing standardized holders, inserts, and replacement spindles locally reduces lead times and prevents line stoppages.
• Local Machine Servicing & Support: Partnering with suppliers that provide regional technical support, machine alignment, and troubleshooting assistance ensures long-term machine precision.
• Coolant Management in High Ambient Temperatures: Soluble oil coolant concentration (typically maintained between 5% and 10%, as specified by the fluid manufacturer) requires frequent monitoring using a refractometer to prevent evaporation-driven chemical imbalances and bacterial degradation in warm environments.
• Operator Training: Continuous training on controller programming, tool presetting, and daily preventive maintenance helps regional machine operators minimize avoidable setup errors.

When to Upgrade Tooling, Workholding, or Machinery

If troubleshooting steps fail to resolve persistent accuracy or finish issues, the problem may stem from worn hardware or outdated equipment. Consider upgrading when:

• Tooling & Holders: Frequent chatter or poor surface finish despite parameter tweaks indicates worn tool holder tapers or insufficient holder clamping force. Explore specialized machining tools and high-rigidity holders.
• Workholding: Workpiece movement or distortion during roughing calls for modular hydraulic vises or zero-point clamping systems.
• CNC Machinery: Persistent geometry errors, spindle runout beyond tolerance, or inability to maintain thermal stability during long production cycles indicate it may be time to inspect or replace older equipment with modern CNC milling machines.

Preventive Maintenance Checklist for CNC Machinery

Establishing a structured daily, weekly, and monthly maintenance schedule prevents unexpected machine downtime:

Daily Checks

• Inspect coolant concentration (Brix scale using refractometer) and fluid levels.
• Clear chips and debris from way covers, tool changers, and location pins.
• Check hydraulic pressure gauges and pneumatic air supply filters.

Weekly Checks

• Inspect way lube oil reservoirs and verify automatic lubrication delivery.
• Clean and inspect spindle taper for fretting, chips, or wear.
• Clean coolant tank filters and oil skimmers.

Monthly/Quarterly Checks

• Inspect drive belts, way covers, and wiper seals for wear.
• Verify axis backlash and geometry using test indicators or ballbar devices.
• Check electrical cabinet air filters and cooling fans.

Minimizing CNC machining errors requires a combined focus on proper cutting parameters, rigid tooling setups, reliable coolant management, and disciplined machine maintenance. By systematically addressing the root causes of tool wear, vibration, and dimensional drift, manufacturers can maximize productivity and part quality.

If you are upgrading your workshop capabilities, sourcing precision tooling, or looking for reliable equipment, explore our selection of CNC milling machines and high-performance machining tools tailored for industrial facilities across Saudi Arabia. For technical advice, equipment specifications, or custom tooling inquiries, Contact Our Technical Team to speak with a machining specialist today.

Frequently Asked Questions

Q: What causes CNC tools to break suddenly during cutting?

Ans : Sudden tool breakage is typically caused by excessive feed rates, severe chip re-cutting in deep pockets, improper tool overhang length, incorrect carbide grade selection for hard materials, or sudden mechanical shock from workpiece movement in the fixture.

Q : How do I eliminate chatter marks in CNC milling?

Ans : To eliminate chatter marks, reduce tool overhang length, lower the depth of cut, use variable-pitch or variable-helix end mills, increase rigidity in workholding, or adjust the spindle speed slightly to break up harmonic vibrations.

Q: Why is coolant concentration important in CNC machining?

Ans : Maintaining proper coolant concentration (typically 5% to 10%, according to the coolant manufacturer's guidelines) ensures adequate lubrication, corrosion protection for machine ways, thermal control at the cutting zone, and effective chip evacuation. Low concentration leads to tool wear and rust, while excessively high concentration causes foaming and residual buildup.

Q : How does thermal expansion affect CNC machining precision?

Ans : As the machine spindle, ball screws, and workpiece heat up during extended production runs, the metal expands. This physical expansion can cause dimensions to drift by tens of microns. Warm-up cycles, climate-controlled shop environments, and linear scale feedback help manage this risk.
