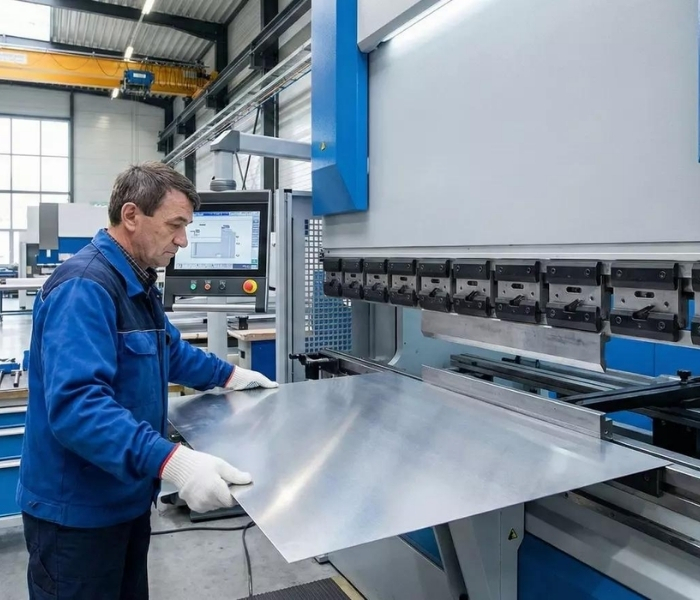

Sheet Metal Bending Problems: Common Causes and Solutions
In sheet metal fabrication, bending defects directly affect your bottom line. An unexpected angular discrepancy or a crack along a bend line leads to rejected components, wasted material, costly manual rework, and inconsistent part dimensions across production batches. Whether using manual, motorized, or CNC bending equipment, maintaining tight tolerances requires precise control over material behavior, tooling setups, and machine parameters.
To help fabricators maintain consistent part quality and reduce scrap rates, this guide examines the four most common sheet metal bending defects springback, outer radius cracking, angular deviation across length, and surface marring, providing clear root causes, actionable troubleshooting sequences, and practical solution steps.
What Causes Sheet Metal Bending Defects?
Sheet metal bending defects arise from the complex interplay between material properties, tooling geometry, and machine setup. Because metals exhibit both elastic and plastic deformation characteristics, releasing forming pressure causes the material to attempt to return toward its original flat state. If tooling clearance, punch radius, or grain orientation is mismanaged, this elastic recovery, combined with mechanical deflection and friction, leads to dimensional inaccuracies and structural flaws.
1. Springback and Angular Inaccuracy
Springback occurs when a bent metal part opens up slightly after the forming pressure is released. When a punch forces a sheet into a die or bending beam, the metal undergoes plastic deformation near the bend apex, while the outer zones experience elastic stress. When the punch retracts, that stored elastic energy forces the bend angle to open up.
Root Causes
- High Material Yield Strength: Materials with high tensile strength and elasticity (such as spring steel, high-strength low-alloy steels, or hard aluminum tempers) store more elastic energy during forming.
- Incorrect Inner Radius-to-Thickness Ratio: A large bend radius relative to the sheet thickness increases the proportion of elastic recovery.
- Inadequate Over-Bending: Programming the machine to stop exactly at the target angle without accounting for material recovery.
Actionable Diagnostic & Troubleshooting Sequence
- Identify the Symptom: Measure the finished bend angle after unclamping; the bend angle is wider than the programmed target angle (e.g., measuring 92 degrees on a target 90-degree bend).
- Check the Likely Cause: Verify material yield strength, sheet thickness consistency, and current inner bend radius settings against tooling specifications.
- Adjust Parameters: Program a calculated over-bend angle into the controller to compensate for elastic recovery, and verify that the punch radius, die opening, and material specifications are fully compatible.
- Test & Verify: Perform a test bend on a scrap piece from the same material batch and measure with a calibrated protractor before resuming full production.
Solutions
- Program Calculated Over-Bending: Over-bend the sheet by a calculated offset so that it springs back precisely to the target dimension.
- Apply Coining: Apply high pressure at the bottom of the stroke to plastically deform the bend area. This severe plastic strain reduces elastic tension across the bend zone and minimizes springback, though it requires significantly higher tonnage and increases tool wear.
- Select Appropriate Tooling: Use bottoming dies or specialized multi-V adjustable dies designed for the specific tensile properties of the alloy.
2. Outer Radius Cracking and Material Fracture
When a sheet metal blank is bent, the outer surface undergoes high tensile stress while the inner surface experiences compression. If the bend radius is too sharp or the material grain is incorrectly oriented, the outer surface fractures or splits along the bend line.
Root Causes
- Inappropriate Bend Radius: Selecting an inner bend radius that is too tight for the specific material, grade, temper, thickness, and grain direction.
- Bending Parallel to the Rolling Grain: Metal sheets possess a directional grain structure formed during rolling. Bending parallel to this grain significantly reduces formability and increases cracking risk.
- Burrs and Edge Imperfections: Un-deburred sheared edges concentrate tensile stress, acting as initiation points for tearing during bending.
Actionable Diagnostic & Troubleshooting Sequence
- Identify the Symptom: Visual inspection reveals micro-fissures, surface crazing, or complete fracturing along the outer radius of the bend.
- Check the Likely Cause: Inspect the sheet's rolling grain direction relative to the bend line, check edge deburring quality, and verify the punch radius against material supplier formability charts.
- Adjust Parameters: Reorient blank layouts so bend lines run perpendicular or at 45 degrees to the rolling grain, increase the punch radius within material guidelines, or deburr the edge thoroughly.
- Test & Verify: Perform a test bend on a prepared sample and conduct a visual or dye-penetrant inspection before running the production lot.
Solutions
- Adhere to Material-Specific Minimum Bend Radii: Consult alloy-specific formability guidelines, considering material grade, temper, and thickness, rather than relying on generic rules of thumb.
- Align Bend Lines Across the Grain: Orient sheet metal blanks so that the primary bend lines run perpendicular (across) the rolling grain direction whenever possible.
- Prepare Sheet Edges: Thoroughly deburr laser-cut, punched, or sheared edges prior to forming to eliminate micro-cracks and stress risers.
3. Angular Deviation Across the Bend Length (Canoeing or Twisting)
When a long sheet metal component measures accurately at the ends but under-bends or over-bends in the center, or twists along its length, the issue stems from mechanical deflection or uneven force distribution across the machine bed.
Root Causes
- Press Brake Bed Deflection: Under high tonnage, the upper ram and lower bed deflect slightly in the center, creating a wider die opening gap that reduces central bending depth.
- Worn or Mismatched Tooling: Uneven wear along punch tips or die shoulders causes inconsistent pressure distribution along the length of the part.
- Material Thickness Variations: Inconsistent rolling thickness across wide sheets creates localized pressure discrepancies.
Actionable Diagnostic & Troubleshooting Sequence
- Identify the Symptom: Measure the bend angle at multiple points along the full length of the part; angles at the center differ from angles at the ends.
- Check the Likely Cause: Inspect lower bed parallelism, check upper and lower tooling alignment, and review current crowning system settings.
- Adjust Parameters: Verify mechanical alignment, adjust crowning compensation according to the machine manufacturer's procedure, and inspect tooling for localized wear.
- Test & Verify: Bend a full-length sample strip, measure angles at regular intervals, and fine-tune crowning until uniformity is achieved.
Solutions
- Utilize Crowning Systems: Use manual or automated crowning systems on the lower beam to counteract bed deflection and maintain uniform penetration depth along the entire workpiece.
- Inspect & Maintain Tooling: Regularly audit upper punches and lower dies for wear and alignment, replacing worn segments as needed according to equipment guidelines.
- Control Material Consistency: Source high-grade sheet metal certified to tight thickness tolerances across the width of the coil or sheet.
4. Surface Marring, Scratches, and Die Markings
Surface marring manifests as heavy scuffs, gouges, or die lines on the outside face of the bend. Aesthetic standards for architectural panels, stainless steel appliances, and coated enclosures make these cosmetic defects unacceptable.
Root Causes
- High Friction Between Sheet and Die: Lack of lubrication or direct steel-on-steel sliding friction during forming.
- Trapped Swarf and Debris: Metallic scale, chips, or dust resting on die shoulders pressed into soft metal surfaces under clamping load.
- Sharp Die Shoulder Radii: Die openings with sharp or un-polished shoulder edges that score the metal as it is drawn into the V-opening.
Actionable Diagnostic & Troubleshooting Sequence
- Identify the Symptom: Parallel scuffs, drag marks, or deep score lines appear along the outer contact zones of the bend.
- Check the Likely Cause: Inspect die shoulder condition for metal pickup, check cleanliness of the lower die, and inspect tooling according to the manufacturer's maintenance instructions.
- Adjust Parameters: Thoroughly clean and inspect die shoulders, apply protective film or non-marking urethane die covers, or widen the die opening where appropriate to reduce shoulder pressure.
- Test & Verify: Form a trial part using protective film or clean tooling and inspect under bright lighting for surface clarity.
Solutions
- Apply Protective Film: Place urethane protective tape or heavy-duty plastic film over V-die openings to prevent direct metal-to-metal contact.
- Use Roller-Style Dies: Select dies with rotating shoulder inserts that roll with the sheet during forming, eliminating sliding friction.
- Maintain Tooling Cleanliness: Implement routine wiping and air-blast cleaning of die shoulders between cycles to remove swarf and scale buildup.
Selecting the Right Bending Machine for Your Facility
Resolving bending problems consistently requires matching your production demands to the correct equipment capabilities. When evaluating machinery for Sheet Metal Working, specifying key operational parameters ensures long-term accuracy and efficiency:
- Material & Thickness Range: Calculate peak tonnage and capacity requirements based on your thickest sheet metal grade and hardest alloy.
- Maximum Bending Length: Select a machine bed length that accommodates your longest production part with adequate margin for end-clearance and deflection control.
- Control Level & Operation: Choose the appropriate machine configuration from available Bending machines:
- Manual Benders: Cost-effective for light maintenance, small workshops, and prototype work where manual control is suitable for low-volume tasks.
- Motorized Benders: Ideal for medium-duty production runs requiring steady powered folding without complex automated programming.
- CNC Benders: Designed for high-volume or complex production requiring program-controlled positioning, repeatable backgauging, and accurate multi-bend sequences.
Equipment and Machinery Solutions in Saudi Arabia
Fabrication facilities, structural steel workshops, HVAC contractors, and industrial service plants across Saudi Arabia require equipment built for continuous performance under demanding workloads. Industrial buyers can review detailed machine specifications and equipment options through Machinery.com.sa.
When sourcing bending equipment for regional facilities, consider: * Verified Technical Specifications: Reviewing capacity ratings, bending lengths, drive systems, and control features across manual, motorized, and CNC models to match exact job requirements. * Equipment Sourcing & Selection: Accessing a broad range of sheet metal working and bending machinery tailored for regional workshop environments. * Procurement Support: Working with technical specialists to ensure selected machines align with your facility's material types, thickness ranges, and production goals.
Preventive Maintenance Checklist for Bending Equipment
Establishing a structured maintenance schedule prevents unexpected downtime and maintains machine accuracy:
Daily Checks
- Clean and inspect punch tips, die shoulders, and bending beams for debris or scale buildup according to manufacturer recommendations.
- Verify hydraulic oil levels and operating temperatures on powered units.
- Test emergency stop buttons, foot switches, and safety sensors.
Weekly Checks
- Inspect hydraulic hoses, valves, and fittings for leaks or pressure drops.
- Clean and lubricate guideways, backgauge ball screws, and linear rails using specified lubricants.
- Verify crowning mechanism movement and hydraulic pressure response.
Monthly/Quarterly Checks
- Check bed parallelism and alignment using precision measurement tools.
- Inspect electrical cabinet cooling fans, air filters, and terminal connections.
- Calibrate backgauge positioning accuracy against reference gauges.
Minimizing sheet metal bending defects requires a systematic approach to material selection, grain orientation, tooling geometry, and machine calibration. By identifying root causes quickly and executing targeted troubleshooting steps, fabricators can achieve repeatable precision across every production run.
If you are outfitting a new workshop, upgrading existing equipment, or expanding your production capacity, explore our selection of Sheet Metal Working machinery and high-performance Bending machines. For technical specifications or equipment inquiries, Contact Our Technical Team to speak with a specialist today.
Frequently Asked Questions
Q : What is springback in sheet metal bending, and how do you fix it?
Ans : Springback occurs when a bent metal part opens up slightly after forming pressure is released due to elastic recovery. It is corrected by programming calculated over-bending into the controller, applying coining techniques to plastically deform the bend area, or verifying compatible tooling geometry.
Q : Why does sheet metal crack on the outside of a bend?
Ans : Outer radius cracking happens when tensile stress on the outside of the bend exceeds the material's elongation limit. Common causes include using a bend radius that is too tight for the specific material grade and temper, bending parallel to the rolling grain, or failing to deburr sheared edges.
Q : How can I prevent die marks on stainless steel or aluminum parts?
Ans : Die marks can be prevented by applying urethane protective film over the V-die, using roller-type dies that eliminate sliding friction, and maintaining clean die shoulders according to manufacturer cleaning guidance.
Q : What parameters should I specify when purchasing a sheet metal bender?
Ans : When selecting a sheet metal bending machine, specify your material type and maximum thickness, maximum bending length, required precision, and desired control level (manual, motorized, or CNC).
